CO2 fire extinguisher refilling machine Factory hot sale CO2 refilling machine for fire extinguisher
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product description:
Cheap For Fire Extinguisher Abc Powder Co2 Filling Machine
extinguisher filling machine is the latest advice in filling industry. It need no heating and refrigerating, and can fill the fire extinguisher directly from the a big steel bottle. Co2 fire extinguisher filling machine is suitable for semiautomatic and automatic filling of portable Co2 fire extinguisher. It mainly consists of control panel, hot and cold constant temperature system and electronic scale. It is safe and reliable with features of simple operation, fast filling, accurate measurement, easy movement and high efficiency.
Detailed Images
fire extinguisher powder filling machine

With CE and ECM certificate.
MODEL NO.: FPW-MH-CO2-01
KEY POINTS The new type CO2 filling machine is the latest developed equipment and patented.
It needs no heating and refrigerating, and you can fill the fire extinguisher directly from a big steel bottle.
It is fitted with imported CO2 ram pump.

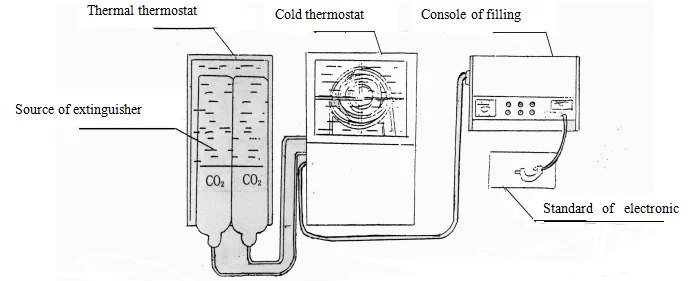

Equipment Working Principle
Product Description
Automatic type CO2 filler
|
Items
|
MT2
|
MT3
|
MT5
|
MT7
|
|
Weight of extinguisher (kg)
|
02 -0.15
|
03 -0.15
|
05 -0.2
|
07 -0.2
|
|
Filling time(s)
|
≤50
|
≤60
|
≤60
|
≤90
|
Working Temperature and Pressure Parameters of the Thermostat of the Filler
A. Thermal uniform temperature is controlled in the range of 38°C~45°C with a pressure of 9- 10Mpa, heater power of 6KW and voltage of 220V.
B. Cold uniform temperature is controlled in the range of –5°C~5°Cwith a pressure of ≤7Mpa and power source voltage of 220V.
extinguisher filling machine-co2 filling machine for fire extinguisher
|
Item |
Host Computer |
Cold Oven |
Hot Bath |
|
Power |
0.1kw |
0.75kw |
3kw |
|
Voltage |
220V/50hz |
220V/50hz |
220V/50hz |
|
Net Weight |
30kg |
135kg |
59kg |
|
Dimensions |
550*510*1030mm |
610*780*1080mm |
1380*620*450mm |
|
Filling Speed |
≥3kg/min |
- |
- |
Questions you may be concerned about:
1.Production time: 7 days (if 1 set in stock).
2.Delivery : By Flight/By Sea both okay (pls advice destination address).
3.Installtion: We have English instructions together with machine , also we support Video online guide .
Factory Info
Established in 2007, Shaoxing City Shangyu Safeway Fire Fighting Equipment Co.,Ltd is a professional manufacturer and exporter which design, produce and sell all kinds of high quality fire extinguishers and accessories for over 13 years. The factory was located in Ningbo, which is very nearing Ningbo and Shanghai Port.
Our main product include Fire Extinguishers, Fire Hose Reels, Fire Hoses, Fire Cabinets, Valves, Pressure Gauges, Couplings, Smoke Alarms, Fire Blanket and other fire equipment, etc.Our brand “Safeway” have been widely exported to 60 countries such as Europe, South America, Southeast Asia, Middle east and the United States. With perfect quality control system, our products and services received good reputation from foreign customers.
Meanwhile Safeway has also established complete quality management system, obtained ISO9001 quality certification.Most of our products have gained the certification of CE0036 as well as BSI EN3. We also supply OEM service, can design and produce products as client's special request.
Our company takes technology as our core, regarding quality as life, will continue to strive for development and create greater glories in the next decade.
